24V 85W Power Adapter/Charger
- Certification: ETL,SAA, CE, RoHS,FCC,CB
- Rated Current：3.6A
- Material:100% PC
- Warranty: 2 Years
- Product description: Wall Mounted 24V 85W Power Adapter/Charger,AC Input 100-240Vac,50-60Hz,Output 24V 3.6A 85W.
Wall Mounted 24V 85W Power Adapter/Charger
(1)High efficiency, High reliability, Long life time
(2)Efficiency: 87% min
(3)Approved ETL CE RoHS FCC SAA CB certification
(4)Warranty: 2 years
(5)Protection: Over current protection, Over voltage protection, Short circuit protection; Over temperature protection.
(6) OEM/ODM welcome (special voltage & dc connector & logo & package).
Product Description:
Model No:PC-240036
AC input: 100-240Vac, 50/60HZ
DC voltage: 24V
Rated current: 3.6A
Rated power: 85W
Ripple & Noise: <240mVp-p
Voltage tolerance: ±5%
Line Regulation: ±1%
Load Regulation: ±5%
Short Circuit protection: shall be protected when any output operation in circuit short condition, and shall be auto restart when the fault condition is removed.
Over Current protection: 130%-150%
Over Voltage protection: 115%-135%
Operation Temperature: -10-50℃ (±10℃)
Storage Temperature: -40-80℃ (±10℃)
DC connector: 5.5*2.5mm or 5.5*2.1mm connector or bare wire(or as your demand)
AC Plug:EU AU US UK Plug(or as your demand)

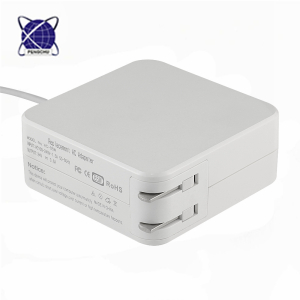

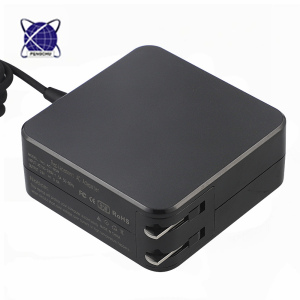

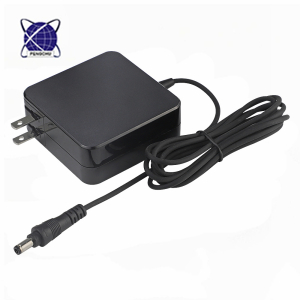

Product show:(EU or US Plug and white or black as your demand)
