120W 12V 10A PC-120100
Model No:PC-120100Certification: UL,CE,RoHS, FCC,CB,SAA
Material:100% PC
Ripple&Noise：<120Mvp

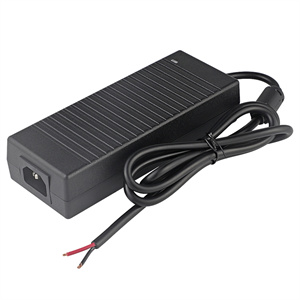

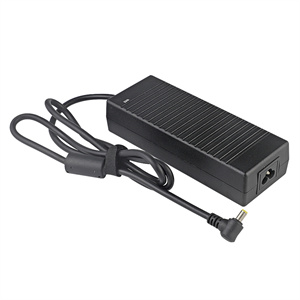

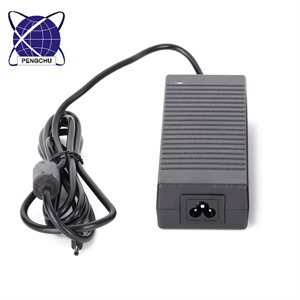

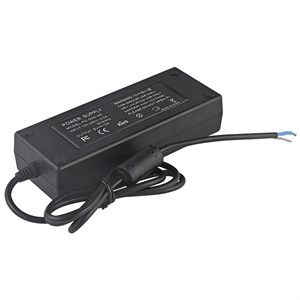

Product description: The external 120W 12V 10A switching power supply unit has universal AC input: 100-240V. This power adapter also have over temperature, over load, over current and short sircuit protection.
INQUIRY
12V 10A 120W AC DC Power Supply
Product Description:
Model No:PC-120100
AC input: 100-240Vac, 50/60HZ
DC voltage: 12V
Rated current: 10A
Rated power: 120W

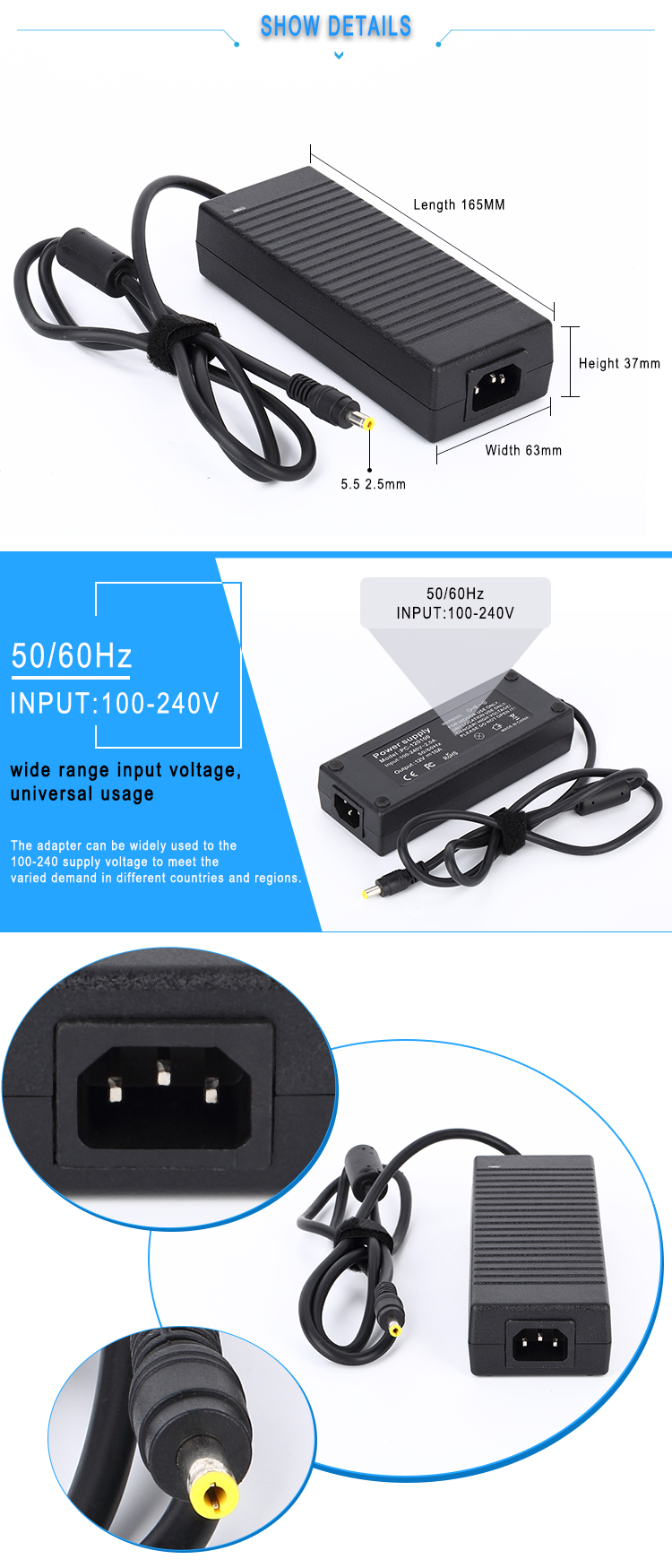

Dimension: 165*63*37MM
Ripple & Noise: <120mVp-p
Efficiency:>88%
Voltage tolerance: ±5%
Line Regulation: ±1%
Load Regulation: ±5%
Short Circuit protection: shall be protected when any output operation in circuit short condition, and shall be auto restart when the fault condition is removed.
Over Current protection: 130%-150%
Over Voltage protection: 115%-135%
Operation Temperature: -10-50℃ (±10℃)
Storage Temperature: -40-80℃ (±10℃)
DC connector: 5.5*2.5/52.1MM/4pin or 6pin connector(Customized Available)
AC Cable: 0.8M/0.9/1.0M(Customized Available)
AC Plug: UK/AU/USA/EU/India plugs (Customized Available)
www.szpcsy.cn
Product Description:
Model No:PC-120100
AC input: 100-240Vac, 50/60HZ
DC voltage: 12V
Rated current: 10A
Rated power: 120W
Dimension: 165*63*37MM
Ripple & Noise: <120mVp-p
Efficiency:>88%
Voltage tolerance: ±5%
Line Regulation: ±1%
Load Regulation: ±5%
Short Circuit protection: shall be protected when any output operation in circuit short condition, and shall be auto restart when the fault condition is removed.
Over Current protection: 130%-150%
Over Voltage protection: 115%-135%
Operation Temperature: -10-50℃ (±10℃)
Storage Temperature: -40-80℃ (±10℃)
DC connector: 5.5*2.5/52.1MM/4pin or 6pin connector(Customized Available)
AC Cable: 0.8M/0.9/1.0M(Customized Available)
AC Plug: UK/AU/USA/EU/India plugs (Customized Available)
Specification and model:
| No.: | Model: | Output Voltage | Output Current | Output Power | DC Connector |
| 1 | PC-050100 | 5V | 10A | 50W | 5.5*2.5/2.1mm or 4pin etc |
| 2 | PC-120085 | 12V | 8.5A | 100W | 5.5*2.5/2.1mm or 4pin etc |
| 3 | PC-120100 | 12V | 10A | 120W | 5.5*2.5/2.1mm or 4pin etc |
| 4 | PC-120100 | 12V | 10A | 120W | 5.5*2.5/2.1mm or 4pin etc |
| 5 | PC-190063 | 19V | 6.3A | 120W | 5.5*2.5/2.1mm or 4pin etc |
| 6 | PC-200060 | 20V | 6A | 120W | 5.5*2.5/2.1mm or 4pin etc |
| 7 | PC-240040 | 24V | 4A | 96W | 5.5*2.5/2.1mm or 4pin etc |
| 8 | PC-240050 | 24V | 5A | 120W | 5.5*2.5/2.1mm or 4pin etc |
| 9 | PC-240050 | 24V | 5A | 120W | 5.5*2.5/2.1mm or 4pin etc |
| 10 | PC-3600342 | 36V | 3.42A | 123W | 5.5*2.5/2.1mm or 4pin etc |
| 11 | PC-480025 | 48V | 2.5A | 120W | 5.5*2.5/2.1mm or 4pin etc |
