24V 15A PC-240150

Model No.: PC-240150
Dimension: 220*110*55MM
Material: 100% PC
Certification: UL,CE,RoHS, FCC,CB,SAA
Ripple&Noise: <240Mvp
Efficiency: >88% with High PFC Function
Fanless Cooling by Free Air Convection

INQUIRY

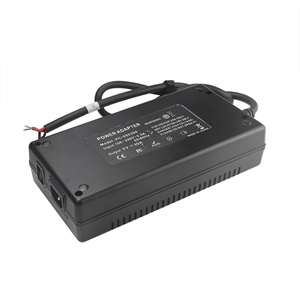

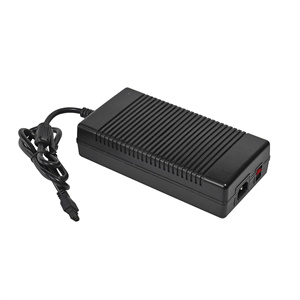

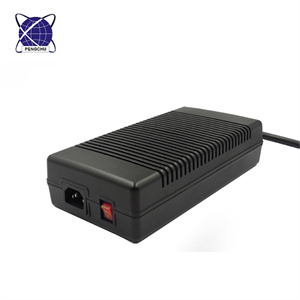

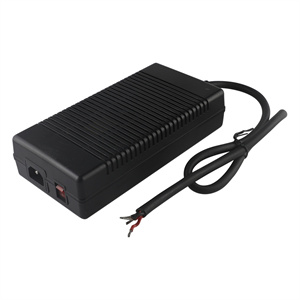

24V 15A 360W AC DC Power Supply
Product Description:
Model No:PC-240150
AC input: 100-240Vac, 50/60HZ
DC voltage: 24V
Rated current: 15A
Rated power: 360W

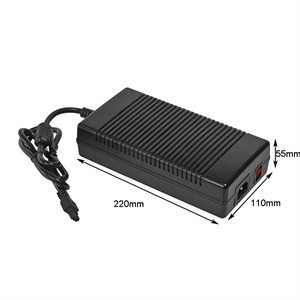

Dimension: 220*110*55MM
Ripple & Noise: <240mVp-p
Efficiency:>88%
Voltage tolerance: ±5%
Line Regulation: ±1%
Load Regulation: ±5%
Short Circuit protection: shall be protected when any output operation in circuit short condition, and shall be auto restart when the fault condition is removed.
Over Current protection: 130%-150%
Over Voltage protection: 115%-135%
Operation Temperature: -10-50℃ (±10℃)
Storage Temperature: -40-80℃ (±10℃)
DC connector: 4pin or 6pin connector(Customized Available)
AC Cable: 0.8M/0.9/1.0M(Customized Available)
AC Plug: UK/AU/USA/EU/India plugs (Customized Available)
