Switch Power Supply
Categories
UL 150W 5V 30A PC-050300
Model No:PC-050300Certification: UL,CE,RoHS,FCC,CB,SAA,etc.
Material:100% PC
Ripple&Noise：<120Mvp

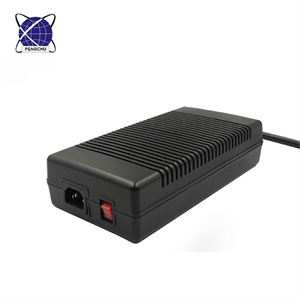

Product description: The external 150W 5V 30A switching power supply unit has universal AC input: 100-240V. This power adapter also have over temperature, over load, over current and short sircuit protection.
INQUIRY
5V 30A 150W AC DC Power Supply
Product Description:
Model No:PC-050300
AC input: 100-240Vac, 50/60HZ
DC voltage: 5V
Rated current: 30A
Rated power: 150W
Dimension: 220*110*55MM
Ripple & Noise: <120mVp-p
Efficiency:>81%
Voltage tolerance: ±5%
Line Regulation: ±3%
Over Current protection: 130%-150%
Over Voltage protection: 115%-135%
Operation Temperature: -10-50℃ (±10℃)
Storage Temperature: -40-80℃ (±10℃)
DC connector: 4pin or 6pin connector(Customized Available)
AC Cable: 0.8M/0.9/1.0M(Customized Available)
AC Plug: UK/AU/USA/EU/India plugs (Customized Available)
Product Description:
Model No:PC-050300
AC input: 100-240Vac, 50/60HZ
DC voltage: 5V
Rated current: 30A
Rated power: 150W
Dimension: 220*110*55MM
Ripple & Noise: <120mVp-p
Efficiency:>81%
Voltage tolerance: ±5%
Line Regulation: ±3%
Load Regulation: ±5%
Certification: UL,CE,RoHS,FCC,CB,SAA,etc.
Over Current protection: 130%-150%
Over Voltage protection: 115%-135%
Operation Temperature: -10-50℃ (±10℃)
Storage Temperature: -40-80℃ (±10℃)
DC connector: 4pin or 6pin connector(Customized Available)
AC Cable: 0.8M/0.9/1.0M(Customized Available)
AC Plug: UK/AU/USA/EU/India plugs (Customized Available)
Specification and model:
| No.: | Model: | Output Voltage | Output Current | Output Power(Full of Power) | DC Connector |
| 1 | PC-050240 | 5V | 24A | 120W | 4pin or 6pin etc. |
| 2 | PC-050260 | 5V | 26A | 130W | 4pin or 6pin etc. |
| 3 | PC-050280 | 5V | 28A | 140W | 4pin or 6pin etc. |
| 4 | PC050300 | 5V | 30A | 150W | 4pin or 6pin etc. |
| 5 | PC-120220 | 12V | 22A | 265W | 4pin or 6pin etc. |
| 6 | PC-120250 | 12V | 25A | 300W | 4pin or 6pin etc. |
| 7 | PC-120280 | 12V | 28A | 340W | 4pin or 6pin etc. |
| 8 | PC-120300 | 12V | 30A | 360W | 4pin or 6pin etc. |
| 9 | PC-180150 | 18V | 15A | 270W | 4pin or 6pin etc. |
| 10 | PC-180200 | 18V | 20A | 360W | 4pin or 6pin etc. |
| 11 | PC-190160 | 19V | 16A | 300W | 4pin or 6pin etc. |
| 12 | PC-240110 | 24V | 11A | 265W | 4pin or 6pin etc. |
| 13 | PC-240120 | 24V | 12A | 290W | 4pin or 6pin etc. |
| 14 | PC-240130 | 24V | 13A | 310W | 4pin or 6pin etc. |
| 15 | PC-240140 | 24V | 14A | 340W | 4pin or 6pin etc. |
| 16 | PC-240150 | 24V | 15A | 360W | 4pin or 6pin etc. |
| 17 | PC-2401667 | 24V | 16.67A | 400W | 4pin or 6pin etc. |
| 18 | PC-360080 | 36V | 8A | 290W | 4pin or 6pin etc. |
| 19 | PC-360090 | 36V | 9A | 330W | 4pin or 6pin etc. |
| 20 | PC-360100 | 36V | 10A | 360W | 4pin or 6pin etc. |
| 21 | PC-360111 | 36V | 11.1A | 400W | 4pin or 6pin etc. |
| 22 | PC-480060 | 48V | 6A | 290W | 4pin or 6pin etc. |
| 23 | PC-480066 | 48V | 6.66A | 320W | 4pin or 6pin etc. |
| 24 | PC-480075 | 48V | 7.5A | 360W | 4pin or 6pin etc. |
| 25 | PC-480083 | 48V | 8.3A | 400W | 4pin or 6pin etc. |
