100W 5V 20A PC-050200
Model No:PC-050200Certification: UL,CE,RoHS,FCC,CB,SAA,etc.
Material:100% PC
Ripple&Noise：<120Mvp
Product description: The external 100W 5V 20A switching power supply unit has universal AC input: 100-240V. This power adapter also have over temperature, over load, over current and short sircuit protection.
INQUIRYProduct Description:
Model No:PC-050200
AC input: 100-240Vac, 50/60HZ
DC voltage: 5V
Rated current: 20A
Rated power: 100W

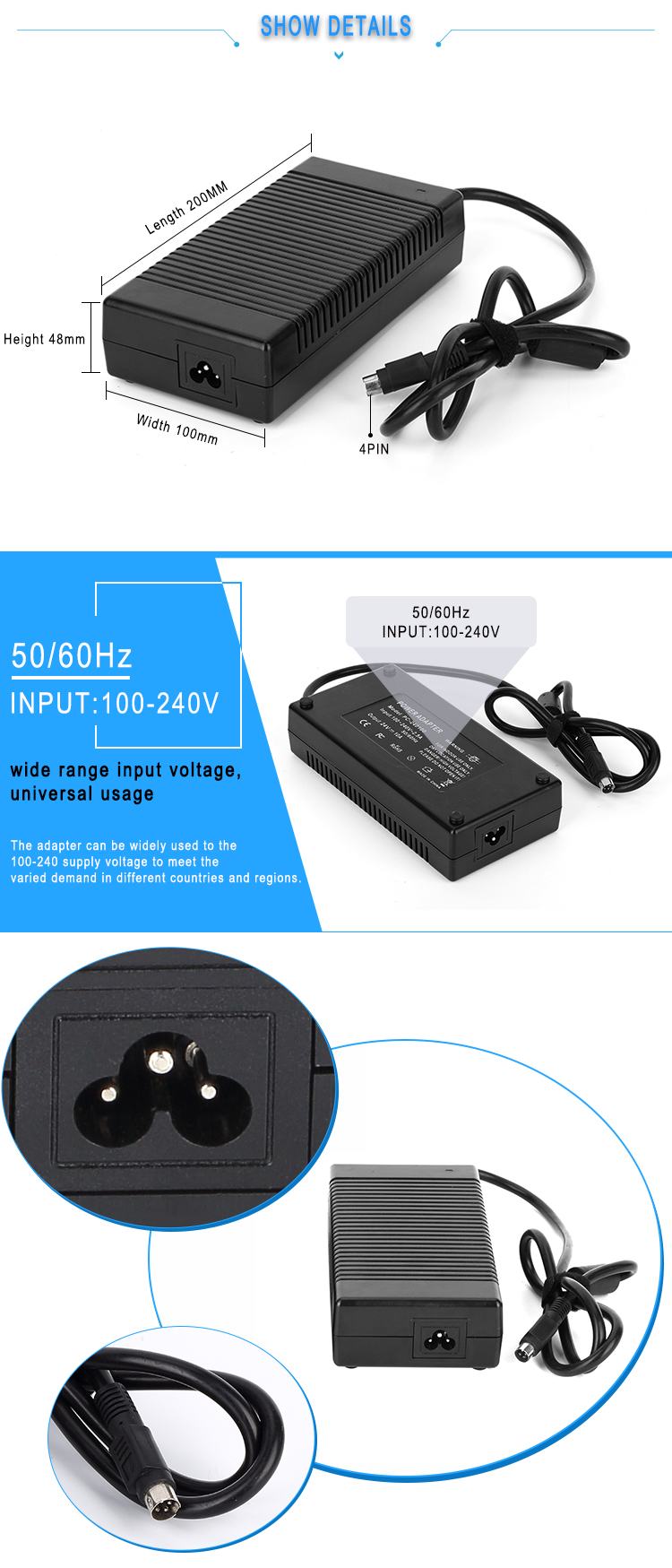

Dimension: 200*100*45MM
Ripple & Noise: <120mVp-p
Efficiency:>81%
Voltage tolerance: ±5%
Line Regulation: ±3%
Load Regulation: ±5%
Certification: UL,CE,RoHS,FCC,CB,SAA,etc.
Over Current protection: 130%-150%
Over Voltage protection: 115%-135%
Operation Temperature: -10-50℃ (±10℃)
Storage Temperature: -40-80℃ (±10℃)
DC connector: PCIE-6Pin connector(Customized Available)
AC Cable: 0.8M/0.9/1.0M(Customized Available)
AC Plug: UK/AU/USA/EU/India plugs (Customized Available)
Specification and model:
www.szpcsy.cnNO.: Model: Output Voltage Output Current Output Power 1 PC-050170 5V 17A 85W 2 PC-050180 5V 18A 90W 3 PC-050190 5V 19A 95W 4 PC-050200 5V 20A 100W 5 PC-050220 5V 22A 110W 6 PC-120125 12V 12.5A 150W 7 PC-120150 12V 15A 180W 8 PC-1201666 12V 16.66A 200W 9 PC-120180 12V 18.33a 220W 10 PC-120200 12V 20A 240W 11 PC-120205 12V 20.83A 250W 12 PC-120215 12V 21.66a 260w 13 PC-170150 17V 15A 255W 14 PC-185135 18.5V 13.5A 250W 15 PC-190100 19V 10A 190W 16 PC-195120 19.5V 12A 234W 22 PC-240110 24V 11A 264W 23 PC-290083 29V 8.3A 240W 26 PC-360070 36V 7A 252W 31 PC-4800542 48V 5.42A 260W
