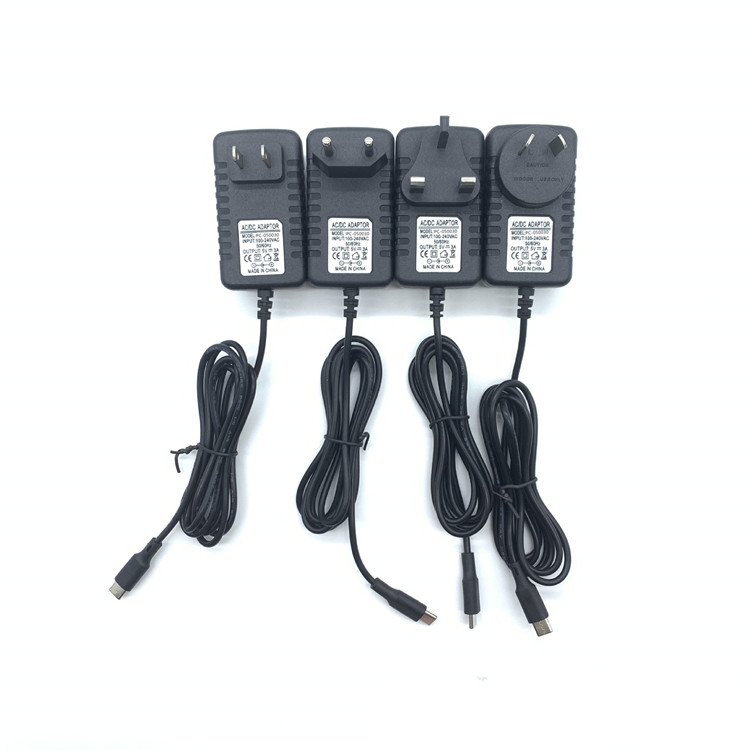

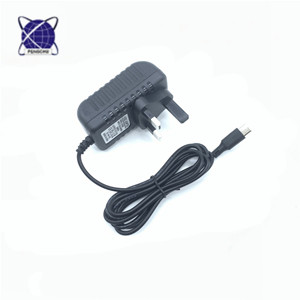

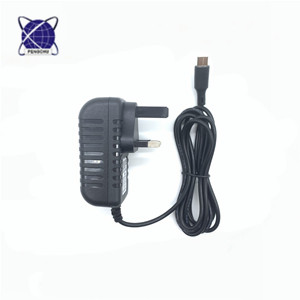

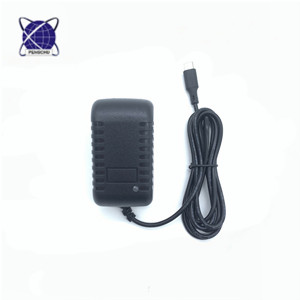

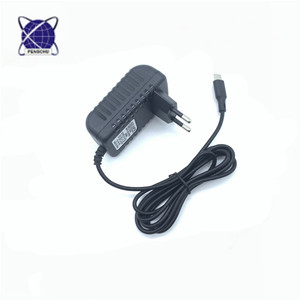

PC-120010 12V 1A USB TYPE-C
Model No:PC-120010
AC input: 100-240Vac, 50/60HZ
DC voltage: 12V
Rated current: 1A
Rated power: 12W
Material:ABS+PC
Certifcates:ETL,CE,FCC,RoHS,SAA,C-tick,CB.
DC Connector: USB TYPE-C/5.5*2.5/2.1mm(Customized Available)
AC Plug:EU/AU/US/UK Plug etc.(Customized Available)
INQUIRYProduct Description:
Model No:PC-120010
AC input: 100-240Vac, 50/60HZ
DC voltage: 12V
Rated current: 1A
Rated power: 12W
Ripple & Noise: <120mVp-p
Efficiency:>85%
Voltage tolerance: ±5%
Line Regulation: ±3%
Load Regulation: ±5%
Short Circuit protection: shall be protected when any output operation in circuit short condition, and shall be auto restart when the fault condition is removed.
Over Current protection: 130%-150%
Over Voltage protection: 115%-135%
Operation Temperature: -10-50℃ (±10℃)
Storage Temperature: -40-80℃ (±10℃)
AC Plug:EU/AU/US/UK Plug(Customized Available)
DC Connector: USB TYPE-C/5.5*2.5/2.1mm(Customized Available)
Leave a Message
Model No:PC-120010
AC input: 100-240Vac, 50/60HZ
DC voltage: 12V
Rated current: 1A
Rated power: 12W
Material:ABS+PC
Certifcates:ETL,CE,FCC,RoHS,SAA,C-tick,CB.
DC Connector: USB TYPE-C/5.5*2.5/2.1mm(Customized Available)
AC Plug:EU/AU/US/UK Plug etc.(Customized Available)
