Power Adapter
Categories
84W 12V 7A PC-120070
Model No:PC-120070Certification: ETL,CE,RoHS,FCC,CB,SAA,etc.
Ripple&Noise：<120Mvp
Product description: The external 12V switching power supply unit has universal AC input: 100-240V. This power adapter also have over temperature, over load, over current and short sircuit protection.
INQUIRY

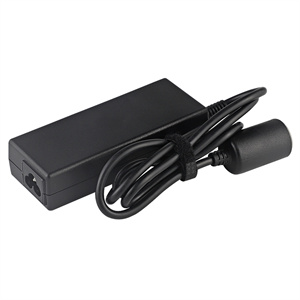

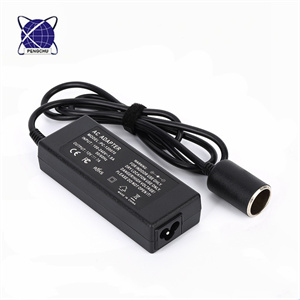

12V 7A 84W AC DC Power Supply
Product Description:
Model No:PC-120070
AC input: 100-240Vac, 50/60HZ
DC voltage: 12V
Rated current: 7A
Rated power: 84W
Ripple & Noise: <120mVp-p
Efficiency:>88%
Voltage tolerance: ±5%
Line Regulation:±1%
Over Current protection: 130%-150%
Over Voltage protection: 115%-135%
Operation Temperature: -10-50℃ (±10℃)
Storage Temperature: -40-80℃ (±10℃)
DC connector: 5.5*2.5/2.1mm or 4Pin connector(Customized Available)
AC Power Cord: 0.8M/0.9/1.0M(Customized Available)
AC Power Cord: 1.2M AC Power Cable with UK/AU/USA/EU/India plugs
Product Description:
Model No:PC-120070
AC input: 100-240Vac, 50/60HZ
DC voltage: 12V
Rated current: 7A
Rated power: 84W
Ripple & Noise: <120mVp-p
Efficiency:>88%
Voltage tolerance: ±5%
Line Regulation:±1%
Load Regulation: ±5%
Certification: ETL,CE,RoHS,FCC,CB,SAA,etc.
Over Current protection: 130%-150%
Over Voltage protection: 115%-135%
Operation Temperature: -10-50℃ (±10℃)
Storage Temperature: -40-80℃ (±10℃)
DC connector: 5.5*2.5/2.1mm or 4Pin connector(Customized Available)
AC Power Cord: 0.8M/0.9/1.0M(Customized Available)
AC Power Cord: 1.2M AC Power Cable with UK/AU/USA/EU/India plugs
Last：72W 12V 6A PC-120060
Next： 90W 12V 7.5A PC-120075
