PC-050050 5V 5A

Model No:PC-050050
AC input: 100-240Vac, 50/60HZ
DC voltage: 5V
Rated current: 5A
Rated power: 25W

Material:ABS+PC
Certifcates:ETL,CE,FCC,RoHS,SAA,C-tick,CB.
DC connector: 5.5*2.5/2.1mm etc.

AC Plug:EU/AU/US/UK Plug etc.

INQUIRY

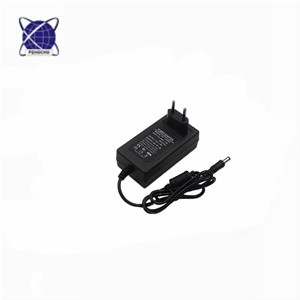

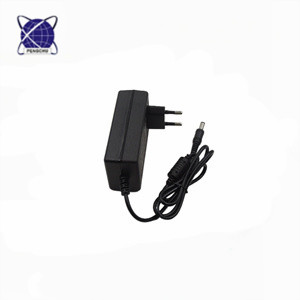

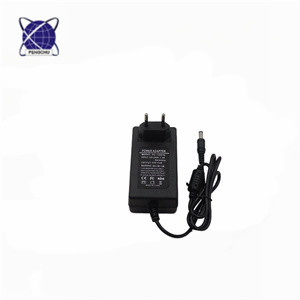

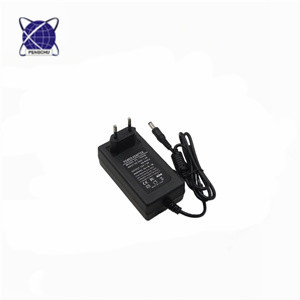

5V 5A Wall Power Adapter
Product Description:
Model No:PC-050050
AC input: 100-240Vac, 50/60HZ
DC voltage: 5V
Rated current: 5A
Rated power: 25W
Ripple & Noise: <120mVp-p
Efficiency:>85%
Voltage tolerance: ±5%
Line Regulation: ±3%
Load Regulation: ±5%
Short Circuit protection: shall be protected when any output operation in circuit short condition, and shall be auto restart when the fault condition is removed.
Over Current protection: 130%-150%
Over Voltage protection: 115%-135%
Operation Temperature: -10-50℃ (±10℃)
Storage Temperature: -40-80℃ (±10℃)

DC Connector: 5.5*2.5/2.1mm(Customized Available)

AC Plug:EU/AU/US/UK Plug (Customized Available)
