175W 5V 35A PC-050350

Model No:PC-050350
Certification: UL,CE,RoHS,FCC,CB,SAA,etc.
Material:100% PC
Ripple&Noise：<120Mvp

Product description: The external 175W 5V 35A switching power supply unit has universal AC input: 100-240V. This power adapter also have over temperature, over load, over current and short sircuit protection.

INQUIRY
5V 35A 175W AC DC Power Supply
Product Description:
Model No:PC-050300
AC input: 100-240Vac, 50/60HZ
DC voltage: 5V
Rated current: 35A
Rated power: 175W

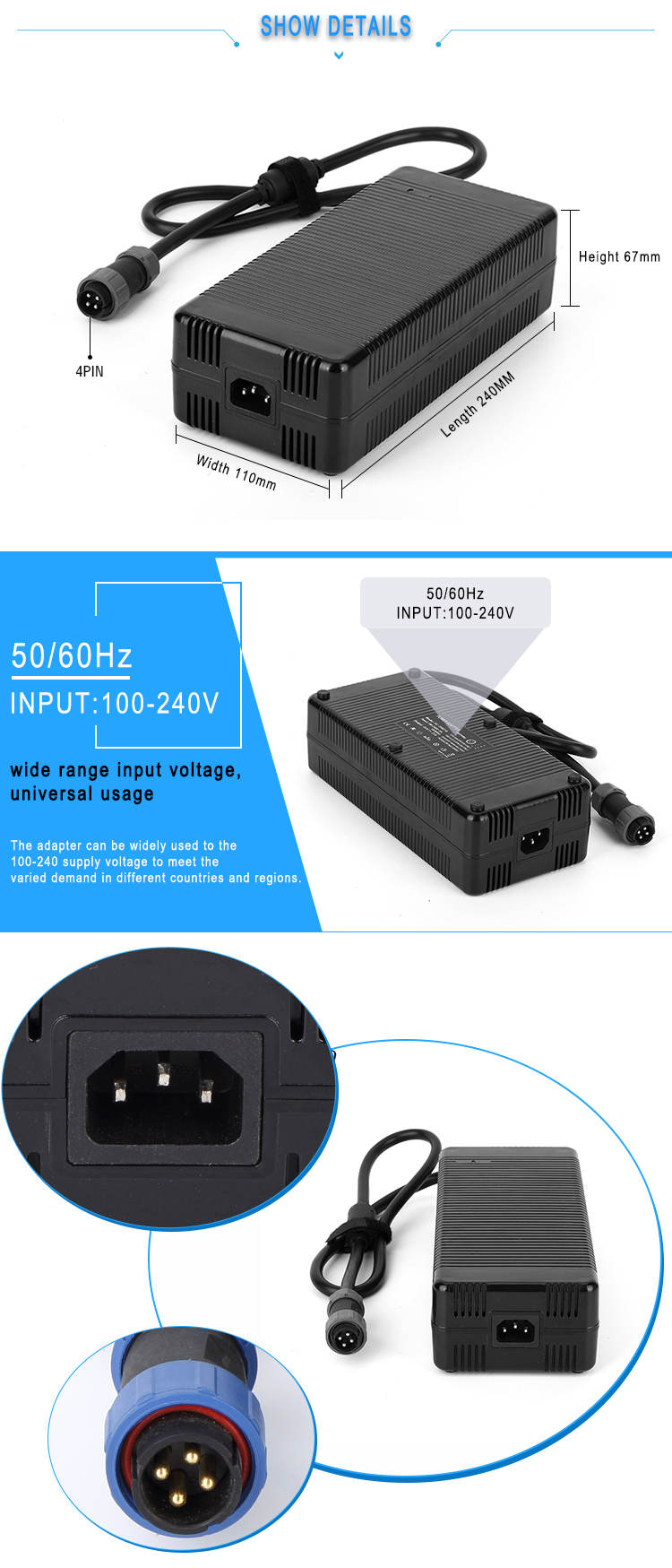

Dimension: 240*110*67MM
Ripple & Noise: <120mVp-p
Efficiency:>81%
Voltage tolerance: ±5%
Line Regulation: ±3%

Load Regulation: ±5%

Certification: UL,CE,RoHS,FCC,CB,SAA,etc.

Short Circuit protection: shall be protected when any output operation in circuit short condition, and shall be auto restart when the fault condition is removed.
Over Current protection: 130%-150%
Over Voltage protection: 115%-135%
Operation Temperature: -10-50℃ (±10℃)
Storage Temperature: -40-80℃ (±10℃)
DC connector: 4pin or 6pin connector(Customized Available)
AC Cable: 0.8M/0.9/1.0M(Customized Available)
AC Plug: UK/AU/USA/EU/India plugs (Customized Available)

Specification and model:

No.:Model:Output VoltageOutput CurrentOutput PowerDC Jack
1PC-0503005V30A150W4Pin or 6Pin
2PC-0503505V35A175W4Pin or 6Pin
3PC-0504005V40A200W4Pin or 6Pin
4PC-0504505V45A225W4Pin or 6Pin
5PC-12030012V30A360W4Pin or 6Pin
6PC-12031012V31A372W4Pin or 6Pin
7PC-12032012V32A384W4Pin or 6Pin
8PC-12033012V33A396W4Pin or 6Pin
9PC-12034012V34A408W4Pin or 6Pin
10PC-12035012V35A420W4Pin or 6Pin
11PC-12036012V36A432W4Pin or 6Pin
12PC-12037012V37A444W4Pin or 6Pin
13PC-12038012V38A456W4Pin or 6Pin
14PC-12039012V39A468W4Pin or 6Pin
15PC-12040012V40A480W4Pin or 6Pin
16PC-12042012V42A504W4Pin or 6Pin
17PC-12045012V45A540W4Pin or 6Pin
18PC-13031013V31A403W4Pin or 6Pin
19PC-15025015V25A375W4Pin or 6Pin
20PC-15030015V30A450W4Pin or 6Pin
21PC-18025018V25A450W4Pin or 6Pin
22PC-18030018V30A540W4Pin or 6Pin
23PC-24015024V15A360W4Pin or 6Pin
24PC-24016024V16A384W4Pin or 6Pin
25PC-24017024V17A408W4Pin or 6Pin
26PC-24018024V18A432W4Pin or 6Pin
27PC-24019024V19A456W4Pin or 6Pin
28PC-24020024V20A480W4Pin or 6Pin
29PC-24021024V21A504W4Pin or 6Pin
30PC-24025024V25A600W4Pin or 6Pin
31PC-28021028V21A588W4Pin or 6Pin
32PC-32015632V15.6A500W4Pin or 6Pin
33PC-36010036V10A360W4Pin or 6Pin
34PC-36011036V11A396W4Pin or 6Pin
35PC-36012036V12A432W4Pin or 6Pin
36PC-36013036V13A468W4Pin or 6Pin
37PC-36015036V15A540W4Pin or 6Pin
38PC-36016536V16.5A594W4Pin or 6Pin
39PC-48008048V8A384W4Pin or 6Pin
40PC-48009048V9A432W4Pin or 6Pin
41PC-48010048V10A480W4Pin or 6Pin
42PC-48011048V11A528W4Pin or 6Pin
43PC-48012548V12.5A600W4Pin or 6Pin
