60W 5V 12A PC-050120
Model No:PC-050120Certification: UL,CE,RoHS,FCC,CB,SAA,etc.
Material:100% PC
Ripple&Noise：<120Mvp

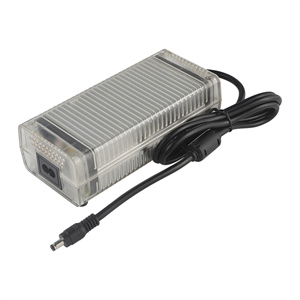

Product description: The external 60W 5V 12A switching power supply unit has universal AC input: 100-240V. This power adapter also have over temperature, over load, over current and short sircuit protection.
INQUIRY
5V 12A 60W AC DC Power Supply
Product Description:
Model No:PC-050120
AC input: 100-240Vac, 50/60HZ
DC voltage: 5V
Rated current: 12A
Rated power: 60W
Dimension: 168*75*50MM
Ripple & Noise: <120mVp-p
Efficiency:>81%
Voltage tolerance: ±5%
Line Regulation: ±3%
Over Current protection: 130%-150%
Over Voltage protection: 115%-135%
Operation Temperature: -10-50℃ (±10℃)
Storage Temperature: -40-80℃ (±10℃)
DC connector: PCIE-6Pin connector(Customized Available)
AC Power Cord: 0.8M/0.9/1.0M(Customized Available)
AC Power Cord: 1.2M AC Power Cable with UK/AU/USA/EU/India plugs
Product Description:
Model No:PC-050120
AC input: 100-240Vac, 50/60HZ
DC voltage: 5V
Rated current: 12A
Rated power: 60W
Dimension: 168*75*50MM
Ripple & Noise: <120mVp-p
Efficiency:>81%
Voltage tolerance: ±5%
Line Regulation: ±3%
Load Regulation: ±5%
Certification: UL,CE,RoHS,FCC,CB,SAA,etc.
Over Current protection: 130%-150%
Over Voltage protection: 115%-135%
Operation Temperature: -10-50℃ (±10℃)
Storage Temperature: -40-80℃ (±10℃)
DC connector: PCIE-6Pin connector(Customized Available)
AC Power Cord: 0.8M/0.9/1.0M(Customized Available)
AC Power Cord: 1.2M AC Power Cable with UK/AU/USA/EU/India plugs
Specification and model:
| No.: | Model: | Output Voltage | Output Current | Output Power | DC Connector |
| 1 | PC-050130 | 5V | 13A | 65W | 4pin or 6pin etc. |
| 2 | PC-050150 | 5V | 15A | 75W | 4pin or 6pin etc. |
| 3 | PC-050160 | 5V | 16A | 80W | 4pin or 6pin etc. |
| 4 | PC-050180 | 5V | 18A | 90W | 4pin or 6pin etc. |
| 5 | PC-050200 | 5V | 20A | 100W | 4pin or 6pin etc. |
| 6 | PC-120125 | 12V | 12.5A | 150W | 4pin or 6pin etc. |
| 7 | PC-120150 | 12V | 15A | 180W | 4pin or 6pin etc. |
| 8 | PC-120160 | 12V | 16A | 192W | 4pin or 6pin etc. |
| 9 | PC-120170 | 12V | 16.67A | 200W | 4pin or 6pin etc. |
| 10 | PC-120180 | 12V | 18A | 216W | 4pin or 6pin etc. |
| 11 | PC-150100 | 15V | 10A | 150W | 4pin or 6pin etc. |
| 12 | PC-190095 | 19V | 9.5A | 180W | 4pin or 6pin etc. |
| 13 | PC-2400625 | 24V | 6.25A | 150W | 4pin or 6pin etc. |
| 14 | PC-240070 | 24V | 7A | 168W | 4pin or 6pin etc. |
| 15 | PC-240075 | 24V | 7.5A | 180W | 4pin or 6pin etc. |
| 16 | PC-240083 | 24V | 8.3A | 200W | 4pin or 6pin etc. |
| 17 | PC-240090 | 24V | 9.2A | 220W | 4pin or 6pin etc. |
| 18 | PC-360040 | 36V | 4.2A | 150W | 4pin or 6pin etc. |
| 19 | PC-360050 | 36V | 5A | 180W | 4pin or 6pin etc. |
| 20 | PC-480032 | 48V | 3.2A | 150W | 4pin or 6pin etc. |
| 21 | PC-480035 | 48V | 3.5A | 170W | 4pin or 6pin etc. |
| 22 | PC-4800375 | 48V | 3.75A | 180W | 4pin or 6pin etc. |
| 23 | PC-480040 | 48V | 4.2A | 200W | 4pin or 6pin etc. |
| 24 | PC-4800458 | 48V | 4.58A | 220W | 4pin or 6pin etc. |
