USB Charger
Categories

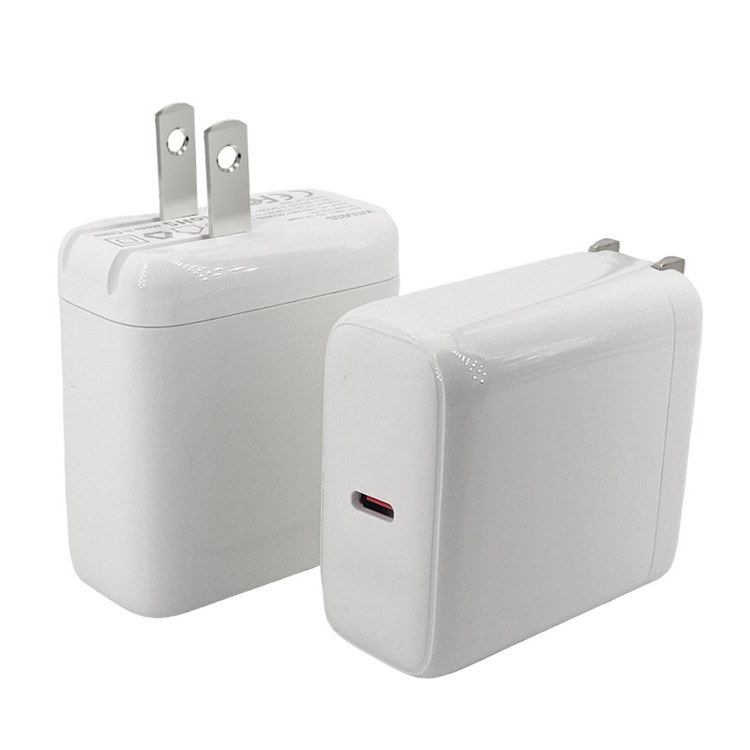

USB Type C PD 61W Power Adapter
Model No:PC-PD61
AC input: 100-240Vac, 50/60HZ
DC output: 5.2V 2.4A,9V 3A,20.3V 3A
Rated power: 61W Max
Material:ABS+PC
Certifcates:ETL,CE,FCC,RoHS,SAA,C-tick,CB.
DC Connector: Mini USB/Mirco USB/USB-C etc.
AC Plug:EU/AU/US/UK Plug etc.
INQUIRYProduct Description:
Model No:PC-PD61
AC input: 100-240Vac, 50/60HZ
DC Output: 5.2V 2.4A,9V 3A,20.3V 3A
Rated power: 61W Max
Ripple & Noise: <120mVp-p
Efficiency:>85%
Voltage tolerance: ±5%
Line Regulation: ±3%
Load Regulation: ±5%
Short Circuit protection: shall be protected when any output operation in circuit short condition, and shall be auto restart when the fault condition is removed.
Over Current protection: 130%-150%
Over Voltage protection: 115%-135%
Operation Temperature: -10-50℃ (±10℃)
Storage Temperature: -40-80℃ (±10℃)
AC Plug: EU/AU/US/UK Plug(Customized Available)
DC Connector: Mini USB/Mirco USB/USB-C(Customized Available)
Leave a Message
Model No:PC-PD61
AC input: 100-240Vac, 50/60HZ
DC output: 5.2V 2.4A,9V 3A,20.3V 3A
Rated power: 61W Max
Material:ABS+PC
Certifcates:ETL,CE,FCC,RoHS,SAA,C-tick,CB.
DC Connector: Mini USB/Mirco USB/USB-C etc.
AC Plug:EU/AU/US/UK Plug etc.
