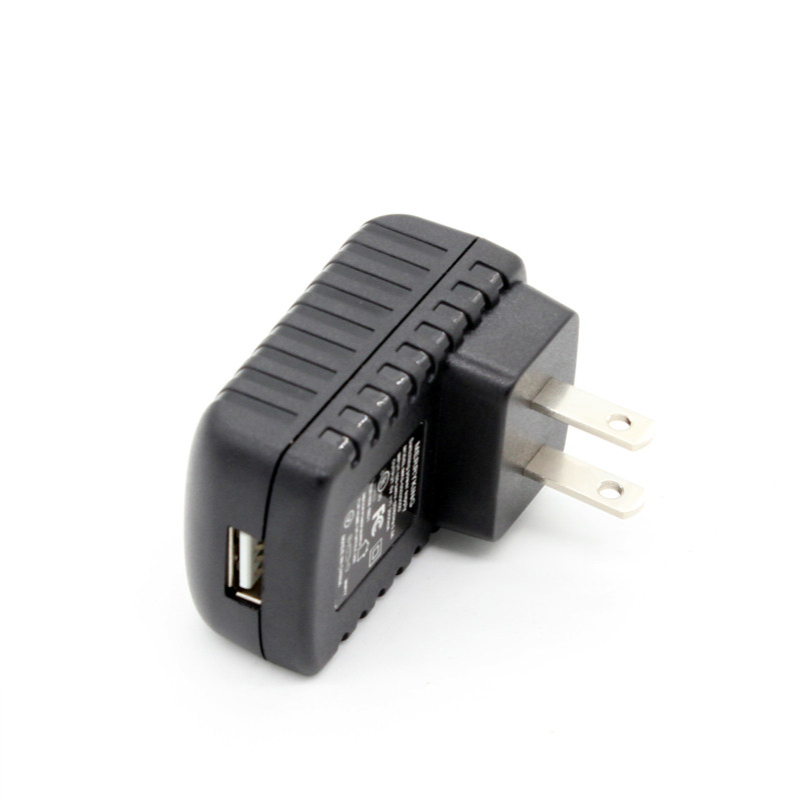

PC-050020 5V 2A USB Power Adapter

Model No:PC-050020
AC input: 100-240Vac, 50/60HZ
DC voltage: 5V
Rated current: 2A
Rated power: 10W

Material:ABS+PC
Certifcates:ETL,CE,FCC,RoHS,SAA,C-tick,CB.
DC connector: Mini USB/Mirco USB/USB-C etc.

AC Plug:EU/AU/US/UK Plug etc.

INQUIRY
5V 2A USB Power Adapter
Product Description:
Model No:PC-050020
AC input: 100-240Vac, 50/60HZ
DC voltage: 5V
Rated current: 2A
Rated power: 10W
Ripple & Noise: <120mVp-p
Efficiency:>85%
Voltage tolerance: ±5%
Line Regulation: ±3%
Load Regulation: ±5%
Short Circuit protection: shall be protected when any output operation in circuit short condition, and shall be auto restart when the fault condition is removed.
Over Current protection: 130%-150%
Over Voltage protection: 115%-135%
Operation Temperature: -10-50℃ (±10℃)

Storage Temperature: -40-80℃ (±10℃)

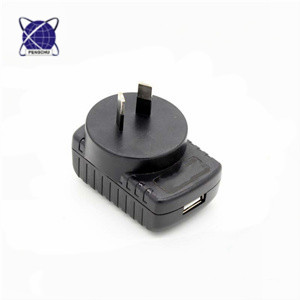

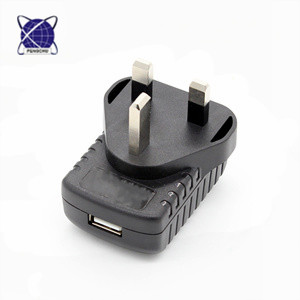

AC Plug:EU/AU/US/UK Plug(Customized Available)

DC Connector: Mini USB/Mirco USB/USB-C(Customized Available)
