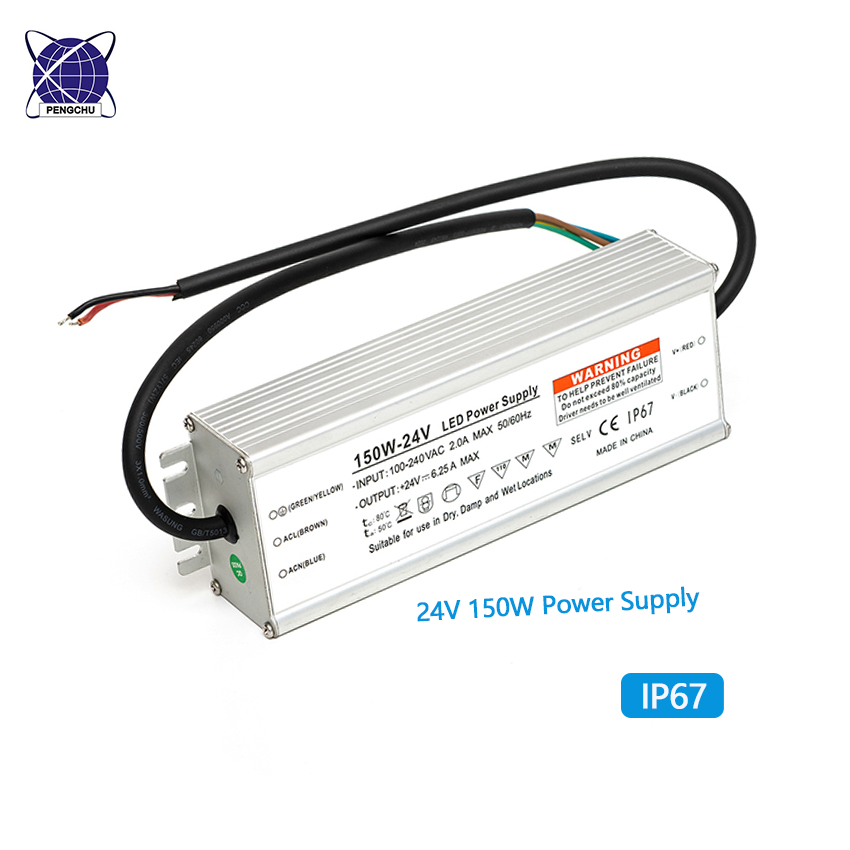

Waterproof IP67 24V 6.25A 150W Power Supply PC-2400625
Model No.:PC-2400625Certification: UL,CE,RoHS,FCC,CB,SAA etc.
Material:Alluminum
IP Rate: IP67
Power Factor: PF＞90
Ripple&Noise：<200Mvp
Product description: The external 150W 24V 6.25A switching power supply unit has universal AC input: 100-240V. This power adapter also have over temperature, over load, over current and short sircuit protection.
INQUIRY
Product Description:
Model No:PC-2400625

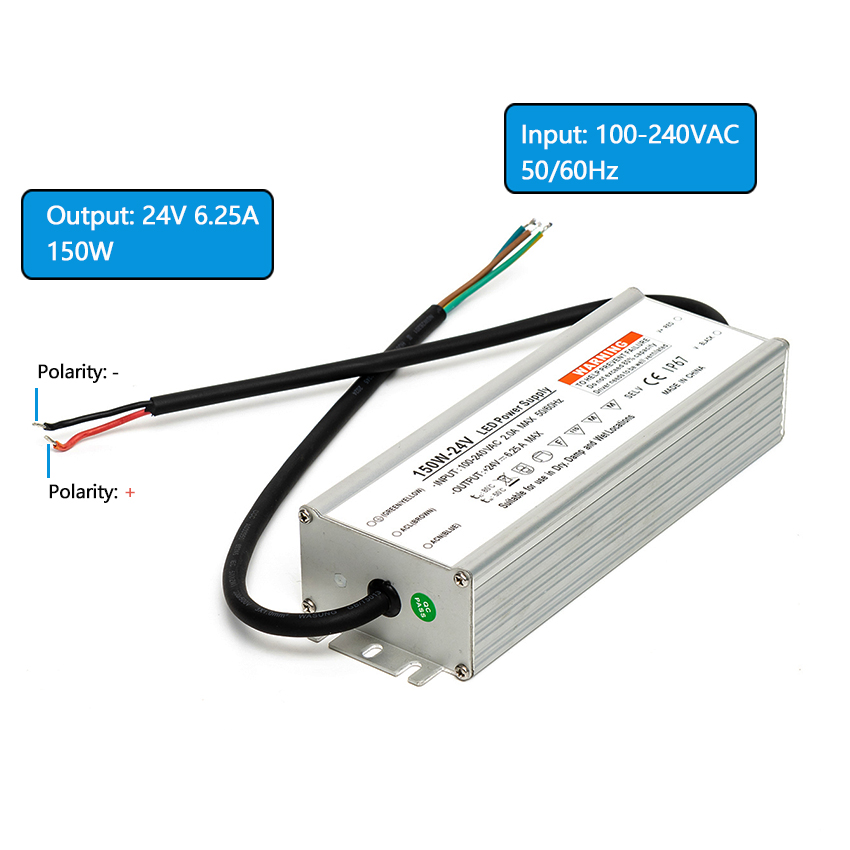

AC input: 100-240Vac, 50/60HZ
DC voltage: 24V
Rated current: 6.25A
Rated power: 150W
Certification: UL,CE,RoHS,FCC,CB,SAA,etc.
Efficiency:>85%
Voltage tolerance: ±5%
Line Regulation: ±3%
Load Regulation: ±5%
Short Circuit protection: shall be protected when any output operation in circuit short condition, and shall be auto restart when the fault condition is removed.
Over Current protection: 130%-150%
Over Voltage protection: 115%-135%
Operation Temperature: -10-60℃ (±10℃)
Storage Temperature: -40-80℃ (±10℃)
DC connector: 3 cores bare wire(Customized Available)
AC Cable: 0.8M/0.9/1.0M(Customized Available)
AC Plug: UK/AU/USA/EU/India plugs(Customized Available)
About this item * Dual output cable design: This 24volt dc led light transformer designed with 2 cables allows for more efficient and flexible energy transmission. The two cables offer versatile usage options, as they can be employed in parallel to enhance power capacity or separately for specific applications. Note: Cannot be dimmable and cannot be used together with dimmer and constant current light
* IP67 Waterproof and Durable Material: Lighting low voltage transformers use a one-piece aluminum casing structure, good sealing, which is IP67 waterproof, has good heat dissipation, low temperature rise, greatly extending its service life

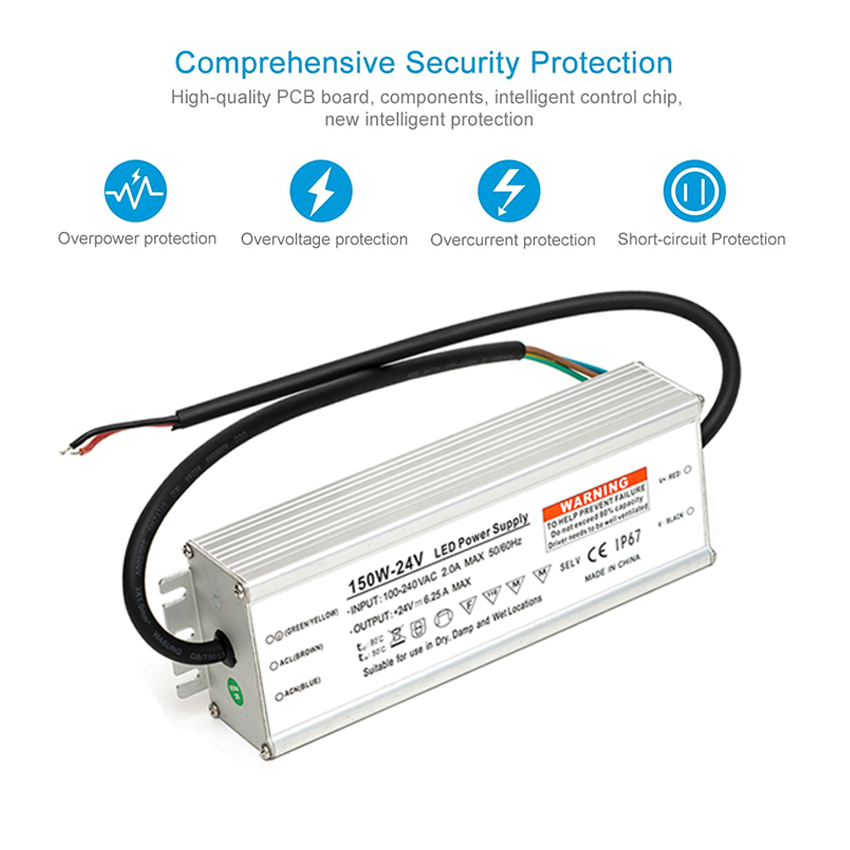

* Automatic Multiple Safety Protection 24V LED Driver Power Supply: Automatic circuit safety protection design for short circuit, overload, over voltage, over current, over temperature. Protection type: Hiccup mode, auto-recovery after fault condition is removed, no flicker
* 24V LED Driver for Widely Use: Converts 110V 120V AC to 24V DC, widely used for led strip lights, led landscape lighting, pool lights, indoor outdoor led signs, modules and other DC 24V equipment. (≤150W)
