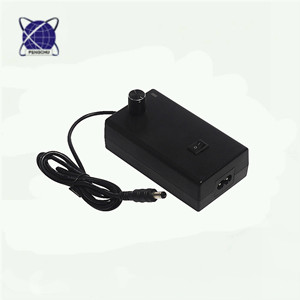

3-12V 2A Adjustable Power Supply
Model No:PC-0312-02
AC input: 100-240Vac, 50/60HZ
DC voltage: 3-12V
Rated current: 2A
Rated power: 24W
Material:ABS+PC
Certifcates:ETL,CE,FCC,RoHS,SAA,C-tick,CB.
DC connector: 5.5*2.5/2.1mm(Customized Available)
AC Plug:EU/AU/US/UK Plug etc.(Customized Available)
INQUIRY
3-12V 2A Adjustable Power Supply
Product Description:
Model No:PC-0312-02
AC input: 100-240Vac, 50/60HZ
DC voltage: 3-12V
Rated current: 2A
Rated power: 24W
Ripple & Noise: <120mVp-p
Efficiency:>85%
Voltage tolerance: ±5%
Line Regulation: ±3%
Load Regulation: ±5%
Short Circuit protection: shall be protected when any output operation in circuit short condition, and shall be auto restart when the fault condition is removed.
Over Current protection: 130%-150%
Over Voltage protection: 115%-135%
Operation Temperature: -10-50℃ (±10℃)
Storage Temperature: -40-80℃ (±10℃)
Product Description:
Model No:PC-0312-02
AC input: 100-240Vac, 50/60HZ
DC voltage: 3-12V
Rated current: 2A
Rated power: 24W
Ripple & Noise: <120mVp-p
Efficiency:>85%
Voltage tolerance: ±5%
Line Regulation: ±3%
Load Regulation: ±5%
Short Circuit protection: shall be protected when any output operation in circuit short condition, and shall be auto restart when the fault condition is removed.
Over Current protection: 130%-150%
Over Voltage protection: 115%-135%
Operation Temperature: -10-50℃ (±10℃)
Storage Temperature: -40-80℃ (±10℃)
DC connector: mini 4pin or 6pin(Customized Available)
