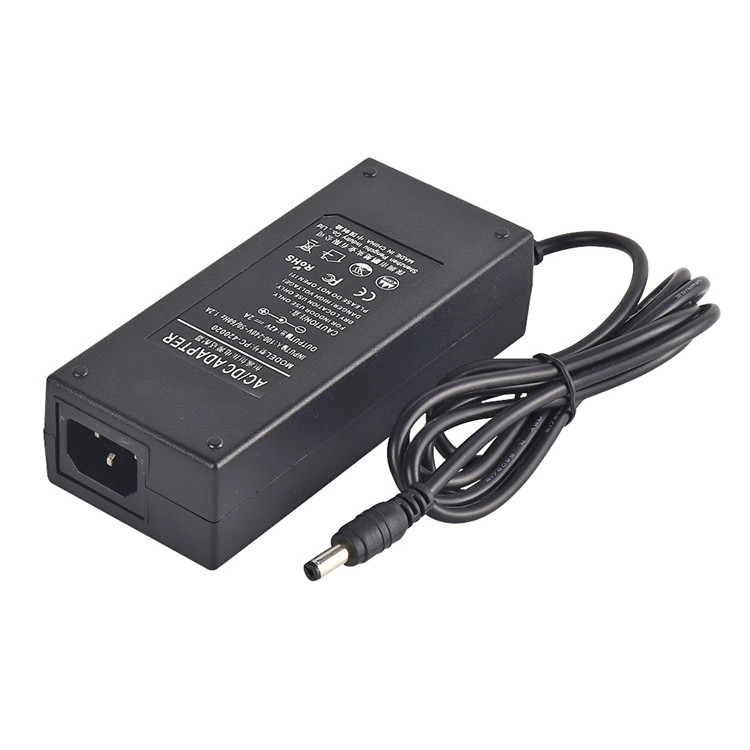

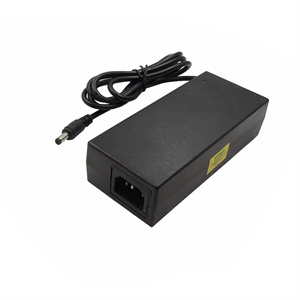

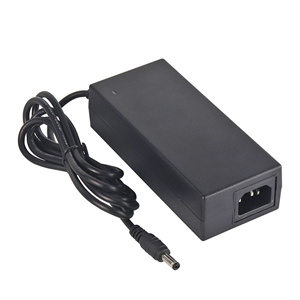

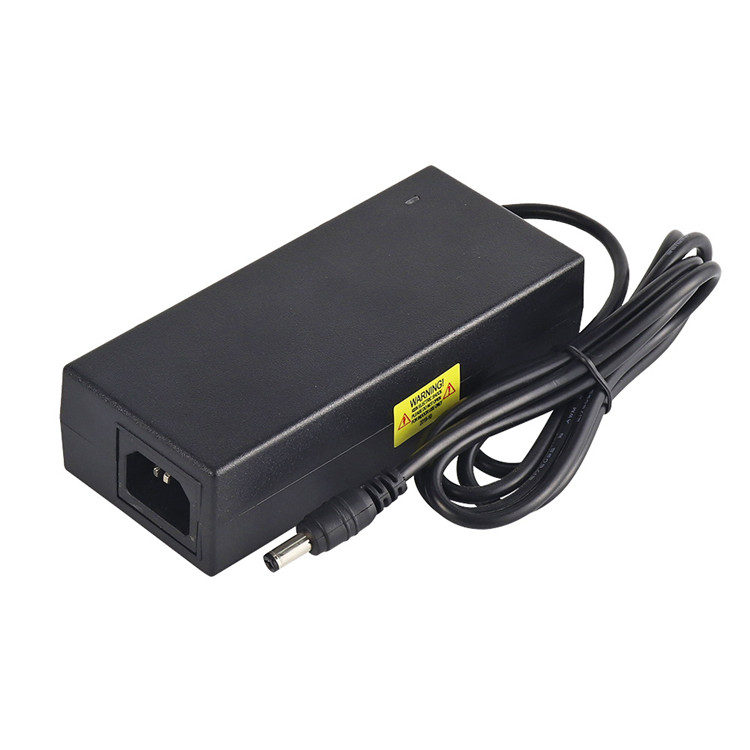

42V 2A Battery Charger
Model No:PC-420020Certification: UL,CE,RoHS, FCC,CB,SAA
Material:100% PC
Ripple&Noise:<420Mvp
Product description: The external 42V electric scooter charger has universal AC input: 100-240V. This power adapter also have over temperature, over load, over current and short sircuit protection.
INQUIRYProduct Description:
Model No:PC-420020
AC input: 100-240Vac, 50/60HZ
DC voltage: 42V
Rated current: 2A
Rated power: 84W
Ripple & Noise: <420mVp-p
Efficiency:>88%
Voltage tolerance: ±5%
Line Regulation: ±1%
Load Regulation: ±5%
Short Circuit protection: shall be protected when any output operation in circuit short condition, and shall be auto restart when the fault condition is removed.
Over Current protection: 130%-150%
Over Voltage protection: 115%-135%
Operation Temperature: -10-50℃ (±10℃)
Storage Temperature: -40-80℃ (±10℃)
DC connector: 5.5*2.5/52.1MM/4pin or 6pin connector(Customized Available)
AC Cable: 0.8M/0.9/1.0M(Customized Available)
AC Plug: UK/AU/USA/EU/India plugs (Customized Available)
