PRODUCTS
Categories
24V 1A Battery Charger
Model No:PC-240010Certification: ETL,CE,RoHS,FCC,SAA,CB,PSE
Ripple&Noise：<240Mvp
Product description: The external 24V switching power supply unit has universal AC input: 100-240V. This power adapter also have over temperature, over load, over current and short sircuit protection.
INQUIRY

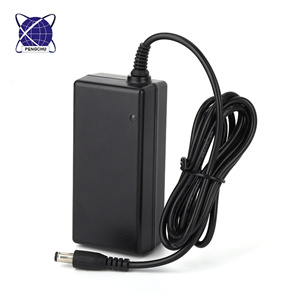

24V 1A Battery Charger
Product Description:
Model No:PC-240010
AC input: 100-240Vac, 50/60HZ
DC voltage: 24V
Rated current: 1A
Rated power: 24W
Ripple & Noise: <240mVp-p
Efficiency:>85%
Voltage tolerance: ±5%
Line Regulation:±3%
Load Regulation: ±5%
Short Circuit protection: shall be protected when any output operation in circuit short condition, and shall be auto restart when the fault condition is removed.
Over Current protection: 130%-150%
Over Voltage protection: 115%-135%
Operation Temperature: -10-50℃ (±10℃)
Storage Temperature: -40-80℃ (±10℃)
DC connector: 5.5*2.5/2.1mm or 4Pin connector(Customized Available)
AC Power Cord: 1.0M/1.2/1.5M(Customized Available)
AC Plug: UK/AU/USA/EU/India plugs(Customized Available)
Product Description:
Model No:PC-240010
AC input: 100-240Vac, 50/60HZ
DC voltage: 24V
Rated current: 1A
Rated power: 24W
Ripple & Noise: <240mVp-p
Efficiency:>85%
Voltage tolerance: ±5%
Line Regulation:±3%
Load Regulation: ±5%
Short Circuit protection: shall be protected when any output operation in circuit short condition, and shall be auto restart when the fault condition is removed.
Over Current protection: 130%-150%
Over Voltage protection: 115%-135%
Operation Temperature: -10-50℃ (±10℃)
Storage Temperature: -40-80℃ (±10℃)
DC connector: 5.5*2.5/2.1mm or 4Pin connector(Customized Available)
AC Power Cord: 1.0M/1.2/1.5M(Customized Available)
AC Plug: UK/AU/USA/EU/India plugs(Customized Available)
